Feature
- Mechanism dimension(L*W*H) : 180*130*33(mm)
- Two sets of output voltage, the maximum output power is 180W
- Universal full range AC input
- Active PFC, P.F.> 0.95
- High efficiency/Low working temperature
- Over voltage protection
- Over current protection
- Low ripple noise at full loading
- Open type, for LCD panel

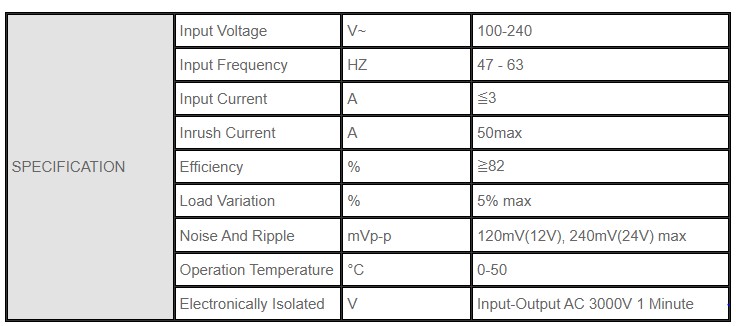

- Specification
| Model | AC Input |
DC Input | SSR | Safety | RoHS |
Remark | ||||||
| +5V | +8V | +12V | +24V | +48V | -5V | -12V | ||||||
| P2180G | 100-240V | 5A | 5A | ● | ||||||||
