Feature
- Carton dimension(L*W*H) : 410*410*305(mm)

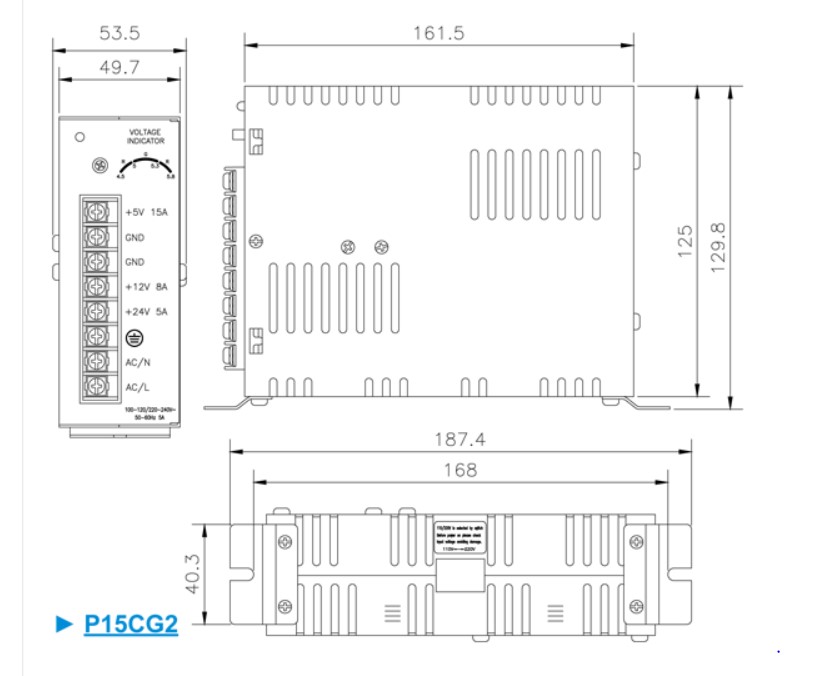

- Mechanism dimension(L*W*H) : 188*130*54(mm)
- Weight :
740g(P15D), 670g(other)/set
18.8kgs(P15D), 17.0kgs(other)/24 sets/carton - High efficiency
- Low cost, High reliability
- High efficiency/Low working temperature
- Over voltage protection
- Over current protection
- Low ripple noise at full loading
- Green led indicator when voltage within +5V~5.3V
- Three-four outputs with maximum power from 100 to 200 watt depending on the model

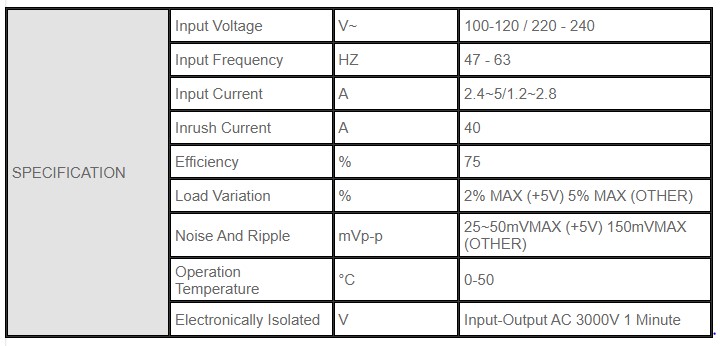

- Specification
| Model | AC Input |
DC Input | SSR | Safety | RoHS | Remark | ||||||
| +5V | +8V | +12V | +24V | +48V | -5V | -12V | ||||||
| P15A24 | 110/220V | 4A | ||||||||||
| P15CF2 | 110/220V | 9A | 6A | 1A | ||||||||
| P15CG2 | 110/220V | 15A | 8A | 5A | CE | ● | ||||||
| P15D1 | 110/220V | 9A | 4A | 1.5A | 1A | |||||||
| P15DG | 110/220V | 4A | 2A | 2A | 1.8A | CE | ● | |||||
