Welcome to HUAI I
Feature
- Carton dimension(L*W*H) : 515*460*270(mm)
- Mechanism dimension(L*W*H) : 195*110.5*43(mm)
- Weight : 920g(P268),770g(other)/set
23.8kgs(P268),19.28kgs(other)/24 sets/carton - Three outputs with maximum power from 110 to 220 watt depending on the model
- Low cost, High reliability
- High efficiency/Low working temperature
- Over voltage protection
- Over current protection
- Low ripple noise at full loading

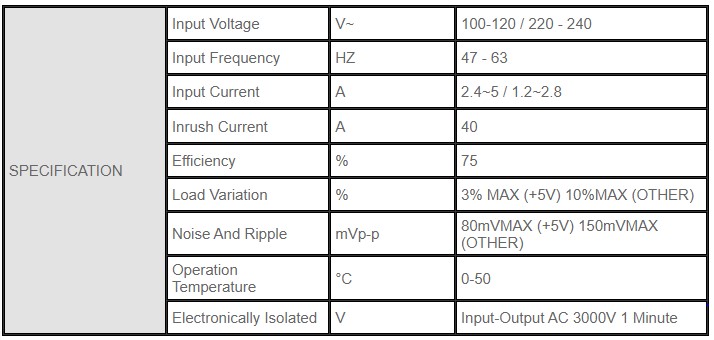

- Specification
| Model | AC Input |
DC Input | SSR | Safety | RoHS | Remark | ||||||
| +5V | +8V | +12V | +24V | +48V | -5V | -12V | ||||||
| P266 | 110/220V | 11.5A | CE | |||||||||
| P267 | 110/220V | 6.5A | CE | |||||||||
| P268 | 110/220V | 15A | 4A | 4A | CE | FAN MOQ1K |
||||||
