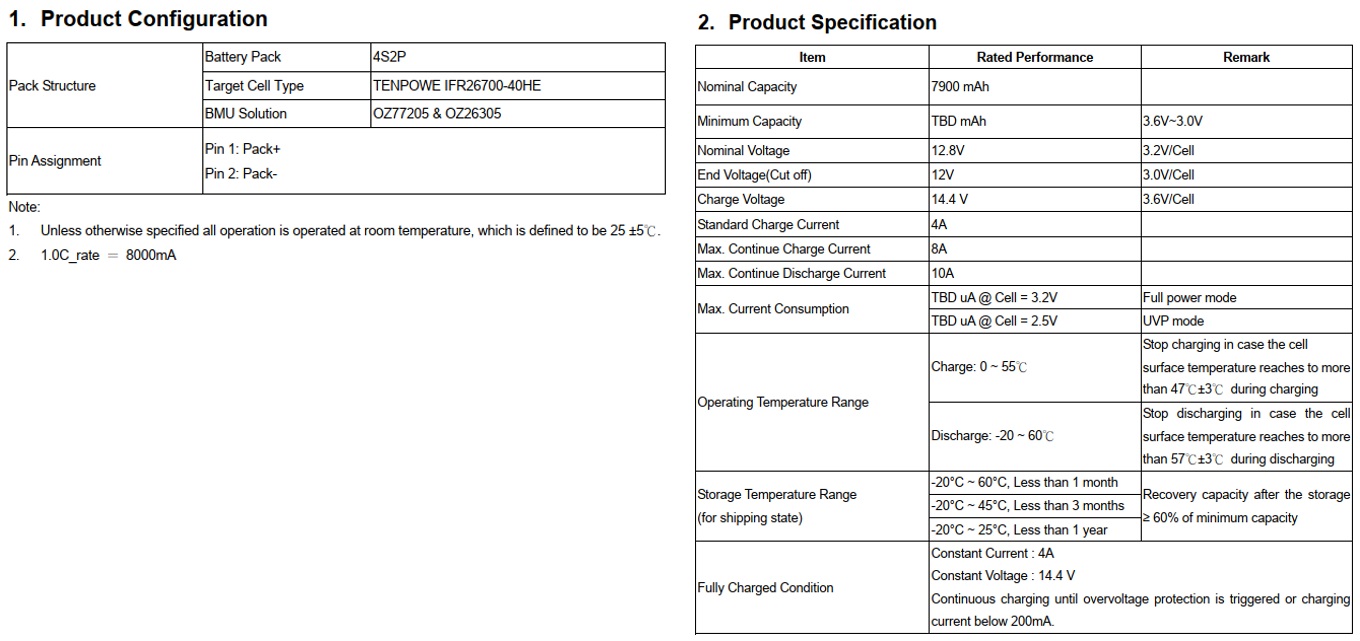

| Item |
Rated Performance |
Remark |
| Typ. Cell Capacity |
8000 mAh |
3.65V-2.00V(Parallel of 2 cell) CHG 0.5C, DSG 0.2C at 25℃ |
| Min. Cell Capacity |
7900 mAh |
| Typ. Pack Capacity |
7200 mAh |
8.3V-6.0V(Parallel of 2 cell) |
| Min. Pack Capacity |
7100 mAh |
1.24A discharge at 25℃ |
| Nominal Voltage |
12.8V |
3.2V/Cell |
| End Voltage |
12V |
3.0V/Cell |
| Max. Current Consumption |
20 uA |
Run mode, 3.2V/Cell |
| Max. Charge Voltage |
≦14.4V |
0 ~ 45℃ |
Cell Surface Temperature |
| Maximum Cell Voltage |
3.6V |
| Standard Charge Current |
3000mA |
| Maximum Charge Current |
5000mA |
-20 ~ 60℃ |
| Maximum Discharge Current |
2000mA |
| Operating Temperature Range |
Charge |
0 ~ 45℃ |
| Discharge |
-20 ~ 60℃ |
| Storage Temperature Range |
-20℃ ~ 45℃ |
Less than 1 month |
| -20℃ ~ 45℃ |
Less than 3 months |
| -20℃ ~ 25℃ |
Less than 1 year |
| Storage Humidity |
25~50% RH |
| Fully Charged Condition |
Constant Voltage : 14.4 V |
| Constant Current : 4000 mA Taper current (cut off) : 160 mA |
